necktie maschine neckti machines
Necktie-machinery for all production operations.
We are the world exclusive dealers for Liba, Tisora and Brimato necktie-machines.
• Sales, service and production-technology for necktie-productions. • Sparepart-Service 6 days a week • ONLY original Spare-parts • Worldwide repair-service
WK 2000 - Tie Tipping Machine
The WK 2000 offers a state-of-the-art sewing system which is both modern and flexible and will revolutionize your necktie production. For the first time the quality of the tie will be in a class of its own. Due to the clamping of the lining and fabric on both sides it is possible to process even delicate/sensitive fabrics. Output: Up to 1100pcs/8 hoursPRODUCTS
WK 3 Automatic tie folding and sewing
machine
LIBA has a world-wide reputation in the necktie industry for the reliability of its machines. We are now pleased to introduce our latest innovation … The LIBA WK 3 with a seamlength of 165 cm. This machine uses the latest and most advanced technology – now offering a productivity that reaches up to the double of the “old” LIBA. Output: Up to 2400pcs/8 hours
WK 4-2 Label machine
The 4-quadrantal control system and the feed motion of the transport by the use of a stepping motor enable the following: - minimum application of mechanics - freely selectable length of stitch - freely selectable number of stitches - the extremely long and slender lower arm enables measured positioning of the label in the machine - central lubrication Output: Up to 1500pcs/8 hours
WK 8-2 Tie Tipping press
For wide and small tips manufactures either manually or automatically, open or closed form. The tips are placed on new kinds of templates, without any vacuum. An expanding template can be used for an open form. Pressing with or without stream. Wide and small tips can be differently vaporized. New stacker works independent of the necktie lengths. Output: Up to 2500pcs/8 hours
WK 9-2 Tie Turner
This machine turns systems – consisting of four stainless steel bars each and with a ring fixed at the end of the bars – also turn sensitive cloth with maximum possible care. A big-dimension, swiveling stacking-drawer allows to turn even large bundles without interruption unloading and to remove them all at once. This maintenance-free constructed machine convinces because of its high productivity and minor corrections of the neckties. Output: Up to 6000pcs/8 hours
WK 10-2 Finishing- Press
The consistent further development of the ironing system. Well- established for many years. This intelligent ironing system is able to iron the neckties with different pressures at definable positions. As the neckties passes through the ironing press between two textile belts, there will be no shining problem on the necktie. No form plates necessary. Output: Up to 2000pcs/8 hours

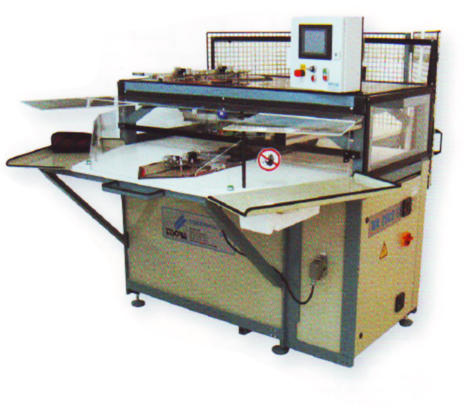

WK 2000 – Tie Tipping Machine
For the first time it is possible to sew tie tips with an absolute hand- looking finish.
A dozen reasons to use the WK 2000:
-
An absolute perfect hand-look finish
-
Operator training takes only minutes
-
Changing of the tem-plates takes only seconds
-
Additional templates are low priced
-
No wear and tear of the templates
-
Same amount of fabric needed as for hand-sewed tips
(less fabric needed in comparison with all other knowing sewing systems)
-
Mostly all kinds of fabric can be used
-
All sewing versions possible by changing the templates:
- Open form hand-look
- Open form machine-look
- Closed form
-
Operator has the possibility to either sit or stand
-
Minimum maintenance system
-
Electronic error-display-panel allows to choose between five languages
-
Equipped with a worldwide well-known lock-stitch-sewing-head which requires minimum maintenance
The WK 2000 offers a state-of-the-art sewing system which is both modern and flexible and will revolutionize your necktie production.
For the first time the quality of the tie will be in a class of its own.
Due to the clamping of the lining and fabric on both sides it is possible to process even delicate/sensitive fabrics.
Output: Up to 1100pcs/8 hours
Technical data:
Electr. connection:
3x 400 V, 50 cycl., 16 A
3x 220 V, 60 cycl., 20 A
Air pressure connection:
8 bars
Working pressure:
5 bars
Weight:
gross
910kg
net
760 kg
Size of machine:
2220 x 19601 x 1730 mm
Subject to change without prior notice
WK 3 Automatic tie folding and sewing machine
LIBA has a world-wide reputation in the necktie industry for the reliability of its machines.
We are now pleased to introduce our latest innovation …
The LIBA WK 3 with a seamlength of 165 cm.
This machine uses the latest and most
advanced technology –
now offering a productivity that reaches
up to the double of the “old” LIBA.
It offers
-
a cycle time of 6.8 seconds (previously 13 seconds)
-
more time for the operator to lay- up the tie fabric despite the shorter cycle time
-
automatic positioning of single or two-piece interlinings
-
easy interchange of magazines which load up to 250 interlinings
-
a transport device (optional) bringing the latest tie sewed with easy handing range, enabling the operator to perform the next
working step, stretching the tie within the cycle time of the machine
The automat is equipped with an electronic control system for all functions including an error display for all conceivable possibilities.
Output: Up to 2400pcs/8hours
Technical data:
Electr. connection:
3x 400 V, 50 cycl., 16 A
3x 220 V, 60 cycl., 20 A
Current consumption:
0.52 kW/h
Air pressure connection:
8 bars
Working pressure:
4,5 bars
Air consumption:
4 l per cycle
Weight:
gross
1190kg (crate)/ 1240 kg (case)
net
890 kg
Packing sizes:
2800 x 1450 x 1570 mm
Subject to change without prior notice

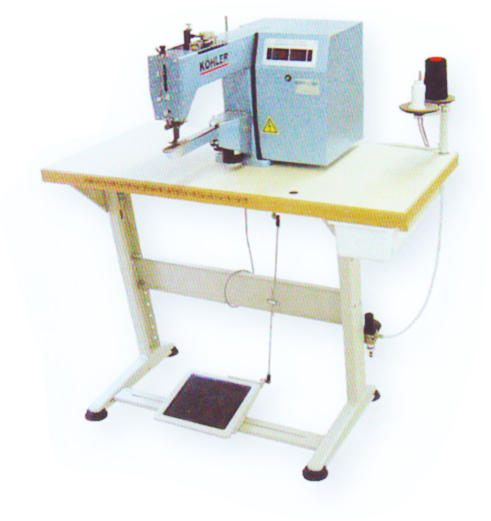

WK 4-2 Label machine
The 4-quadrantal control system and the feed motion of the transport by the use of a stepping motor enable the following:
- minimum application of mechanics
- freely selectable length of stitch
- freely selectable number of stitches
- the extremely long and slender lower arm enables measured
positioning of the label in the machine
Length of arm: 240 mm (slim part)
Width of arm: 25 mm
- central lubrication
The machine sews a normal seam (one-thread chain-stitch).
Length of stitch:
1-4 mm adjustable in 0,1 mm-steps
Number of stitch:
3-64
Length of seam:
adjustable up to 32 mm
In addition, a bartacking programme can be used by pressing a button, i.e.
1.
sewing of bar tack, idle transport without sewing
2.
sewing of bar tack (like a bar tack)
The distance between the bar tacks, the length of the single bar tack and the number of stitches per bar tack can be easily adjusted.
The thread cutter consists of a knife at the back of the looper. When the looper turns back, the thread is being cut. By using this
system, it is possible to sew with an extremely low thread tension; this will in no way effect the thread.
The machine has two service programmes:
With programme 1 all functions can be used separately (food up/down, release of brake, slow speed forwards/backwards).
With the programme 2 a complete seam can be sewn in slow speed (e.g. in order to watch the opening of the loop).
Output: Up to 1500pcs/8hours
Technical data:
Electr. connection:
1x 230 V / 50 cycl., or 2x 110 V/ 60 cycl.
Current consumption:
0.2 kW/h
Air pressure connection:
0,1l per cycle
Length of arm:
240 mm (slim part)
Width of arm:
25 mm
Weight:
head only
gross
60kg
net
40 kg
head with stand mounted
gross
150kg
net
66 kg
Packing sizes:
head only (on mini-pallet)
1200 x 600 x 600 mm
head with stand mounted (in create)
1210 x 730 x 1000 mm
Subject to change without prior notice

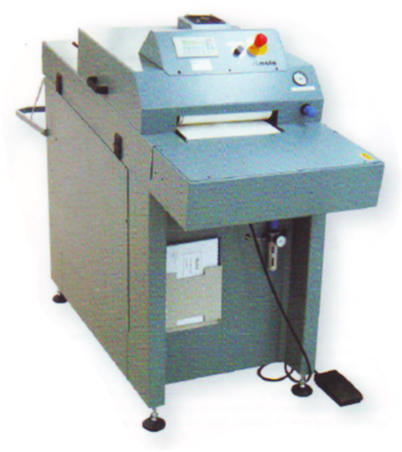

WK 8-2 Tie Tipping press
Application range:
For wide and small tips manufactures either manually or automatically, open or closed form.
The tips are placed on new kinds of templates, without any vacuum. An expanding template can be used for an open form.
Pressing with or without stream.
Wide and small tips can be differently vaporized.
New stacker works independent of the necktie lengths.
Output: Up to 2500pcs/8hours
Technical data:
Electr. connection:
2x 400 V, 16 A
3x 220 V, 20 A
Current consumption:
4,5 kW/h
Air pressure connection:
8 bars
Working pressure:
6 bars
Air consumption:
30 l per cycle
Stream connection:
4 bars
Weight:
gross
480 kg
net
250 kg
Packing sizes:
1530 x 930 x 1950 mm
Subject to change without prior notice

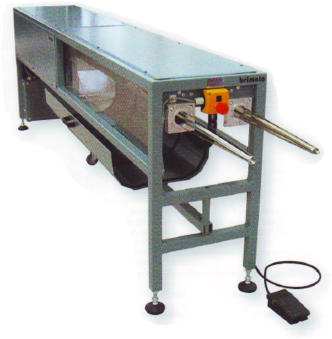

WK 9-2 Tie Turner
This machine turns systems – consisting of four stainless steel bars each and with a ring fixed at the end of the bars – also turn sensitive
cloth with maximum possible care.
A big-dimension, swiveling stacking-drawer allows to turn even large bundles without interruption unloading and to remove them all at
once.
This maintenance-free constructed machine convinces because of its high productivity and minor corrections of the neckties.
Output: Up to 6000pcs/8hours
Technical data:
Elec. connection:
1x 240 V, 50/60 cycl., 10 A
2x 220 V, 50/60 cycl., 16 A
Working pressure:
6 bars
Air consumption:
0,1 l per cycle
Weight:
gross
285 kg
net
145 kg
Packing sizes:
2840 x 630 x 1250 mm
Subject to change without prior notice

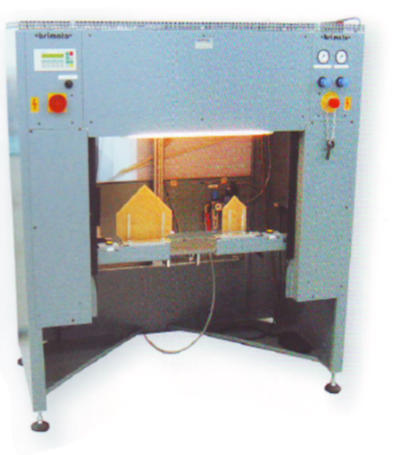

WK 10-2 Finishing- Press
The consistent further development of the ironing system. Well-established for many years.
This intelligent ironing system is able to iron the neckties with different pressures at definable positions.
As the neckties passes through the ironing press between two textile belts, there will be no shining problem on the necktie.
No form plates necessary.
Two ironing systems, working parallel and independent of each other, allow a high productivity.
Due to an extremely strong vacuum, the neckties will be completely cooled and dehumidified.
The stackers work independent of the necktie lengths and allow the unloading of exactly stacked and complete bundles.
Output: Up to 2000pcs/8hours
Technical data:
Connection:
2x 400 V, 50 cycl.
3x 220 V, 60 cycl.
Current consumption:
6,5 kW/h
Air consumption:
7,2 l per cycle
Weight:
gross
370 kg
net
230 kg
Packing sizes:
1860 x 870 x 1660 mm
Subject to change without prior notice
